Steel Structure Supermarket

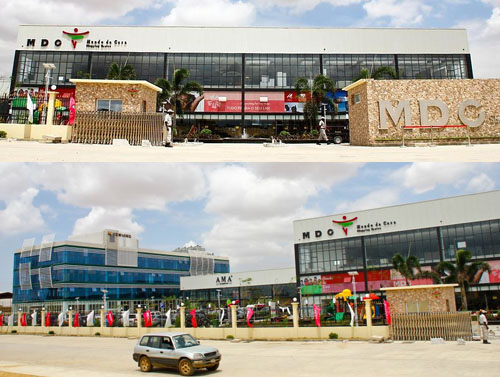

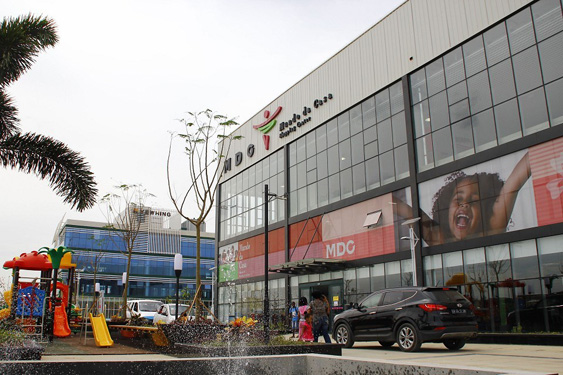

Steel structure supermarket shopping mall, built in Angola. All steel frameworks are covered by fireproof coating to get better effect of fireproof after erection. Steel structure supermarket with main frame steel structure, has characteristics of high strength, light weight. Steel structure shopping mall has beautiful appearance, diversified color options, fashionable and unique, also has advantages of excellent water resistance and drainage.

Steel Structure Supermarket:
1. Colum and Beam: Welded H section steel with materials of Q345
2. Purlin:   Welded C section steel with materials of Q235, C C200*70*20*2.5;
                   Welded Z section steel with materials of Q235, Z250*75*20*2.5
3. Roof cladding: V-950,0.45/100mm glass wool/0.45
4. Gable wall cladding: 100mm fiberglass wool sandwich panels.
