Flat Packing Container House XGZCH014
Product Description
Structural Drawings
Technical Parameters
Relevant Pictures
Flat packing container house:
The flat packing container house is we made for our customer from Australia. The container house has many good characteristics, such as: Flexible layout, Cost saving, easy tranportation, Fast construction, Enviorment friendly and so on.

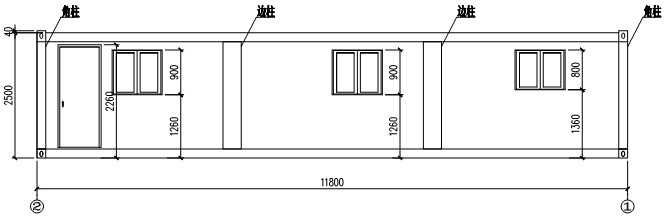

Front elevation

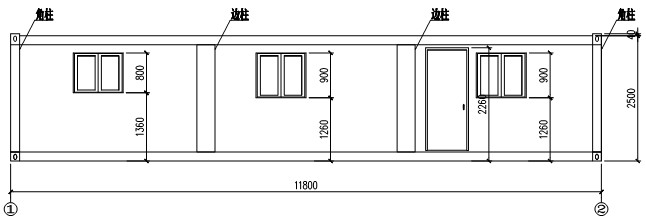

Back elevation
Flat packing container house:
1. Roof system: 1.2mm profiled plate sheet+steel frame
2. Exterior wall pannel: V-1150, 0.45mm/60mm/0.45mm EPS, Volume: 12kg/m³ (GUANZHOU)
3. Partition wall pannel: V-1150, 0.45mm/50mm/0.45mm EPS, Volume: 12kg/m³ (GUANZHOU)
4. Floor system:Vinyl flooring+Cement fiberboard+steel frame
5. Doors: sandwich panel door
6. Windows: PVC window
7. Electrical system: AS/NZS standard, BS standard, VDE standard, UL standard, GB standard etc
8. Water pipe: PPR, PEX-b, PAP etc
9. Sewage pipe: PVC etc
10. Light: ceiling light or fluorescent light
11. Facilities: shower cubicle, toilet, urinal, hand basin, mirror, water heater, air-conditioning, kitchen cabinet, table, chair, wardrobe, TV, fridge, bed, matres, smoke detector etc.
12. Dimension: 11500(L)*2300(W)*2500(H)mm
