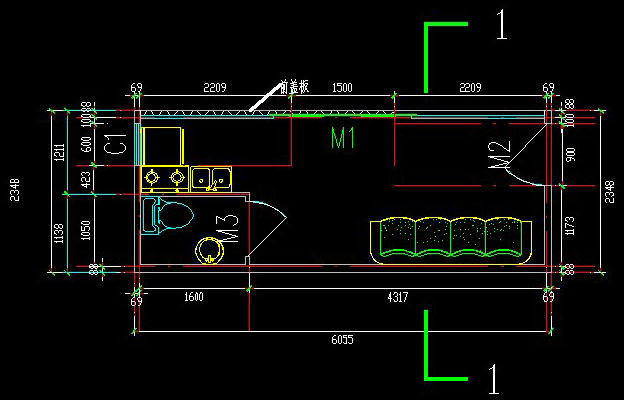

Structural Drawings
Technical Parameters
Relevant Pictures
container house:
The container house is movable as a whole unity. This kind of container house Container house is widely used as office, meeting room, dormitory, shop, booth, toilet, storage, kitchen, shower room, etc. Using a kind of 1150 modulus design, with security nets, doors and floor tile, it’s firm and safe. Cabinet unit structure for the introduction of steel and cold-formed steel welded together to make up standard components. The container house can be designed just as just one unit or connected to a whole from several boxes, by simple connection such as bolts. Easy to assemble.
cntainer house_one wall folding:
1) Designed and developed according to the standard size of shipping container house
2) Size: 6058 * 2438 * 2700mm;
3) Materials:
• Standard 20’ shipping container house for show room
• Wall insulation: 50mm thickness EPS sandwich panel
• Front wall can be closed up and leveled down as deck
• PVC ceiling, water-proof laminated flooring
• With electricity and water supply & drainage system
4) All the components of the container house are up to standard and prefabricated with the advantage of easy installation and uninstallation.
5) Easy assembly and disassembly: Only six skilled workers are needed to finish three modular units in 8 hours;
6) One 40ft HQ container can load six sets of 5,950 x 2,310 x 2,740mm standard units or six sets of 6,055 x 2,435 x 2,740mm standard units;
7) The standard unit can be connected together at any direction or stack up to two or three stories;
8) Waterproof design of structure, fireproof, and heat insulation of material ensure the house to resist heavy wind load of 1.5kN/m2 and 7° seismic intensity
