Double Story Prefab House
Product Description

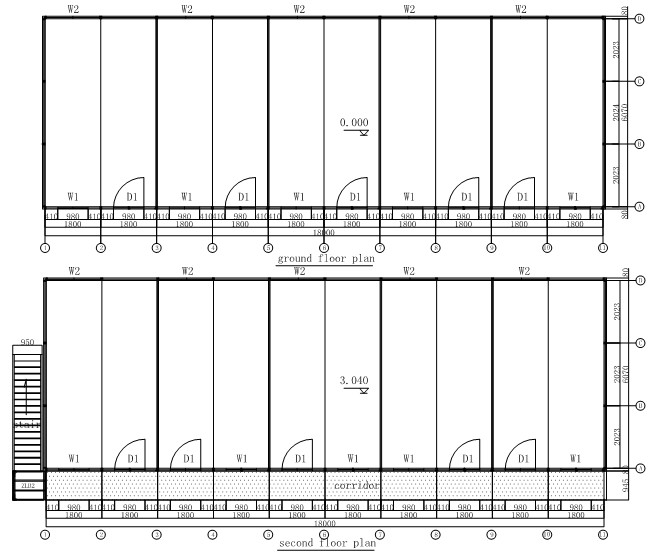

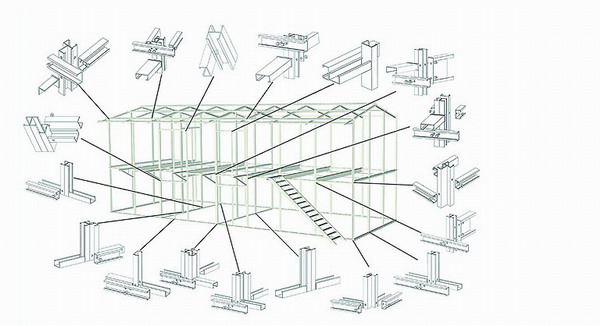

Structural Drawings
Technical Parameters
Relevant Pictures
Prefab house is widely used in remote areas as resident houses, construction accommodations, office, classroom, clinics, oil field camps, offshore accommodation, labor camps, guardrooms, container house and mobile house, the prefab house has advantages in easy installation, low time and labor cost, being economical and environmentally friendly. The main framework of prefab house is light steel structure and the wall&roof panel is sandwich type. All steel parts are connected by screws.
|
Item
|
Sorts
|
Name
|
K-series two storeys
|
K-series three storeys
|
|
1
|
products model
|
standardized intensity
|
standardized products,standardized dimension modulus,the production is progressed according to the standardized plan
|
|
|
2
|
removable performance
|
the house can be removed and used repeatedly 8 times in normal usage, and the utilization rate could reach to 98％ or more than that
|
||
|
1
|
specification mK×nK×hP=length×width×height
|
length
|
nK+160,1K=1820mm,(n is an arbitrary number which equals to or more than 2,n=2,3,4,5,6… )
|
nK+160,1K=1820mm,(n is an arbitrary number which equals to or more than 2,n=2,3,4,5,6… )
|
|
2
|
width
|
mK+160,1K=1820mm,(m is an arbitrary number which equals to or more than 2,m=2,3,4,5,6…)
|
mK+160,1K=1820mm,(m is an arbitrary number which equals to or more than 2,m=2,3,4,5,6…)
|
|
|
3
|
wall height
|
criteria：2850mm/3940mm（adjustable scope：2450～3000mm/3500～4050mm）
|
criteria：2850mm/3940mm（adjustable scope：2450～3000mm/3500～4050mm）
|
|
|
4
|
inner clear height
|
2400mm（the height of the lowest part indoor）1P=950mm two storeys means 6P ，H=3，6，9
|
2400mm（the height of the lowest part indoor）1P=950mm，three storeys means 9P，H=3，6，9
|
|
|
5
|
standard components
|
ground beam
|
C80# steel,the steel which shapes like English word "C" and made of galvanized steel
|
|
|
6
|
upright column
|
C80*40*1.8mm it was jointed into one by two galvanized steel
|
C80*40*1.8mm it was jointed into one by two galvanized steel，and the first layer has been reinforced
|
|
|
7
|
floor beam
|
the trussed beam was made of welded and galvanized C80# steel
|
||
|
8
|
floor purlin
|
C80# steel,the steel which shapes like English word "C" and made of galvanized steel
|
||
|
9
|
roof beam
|
the purlin was made of square steel tube with the material of Q235,and the surface of the structral member is stain proofing
|
||
|
10
|
roof purlin
|
C80#steel,it was made of galvanized steel
|
||
|
11
|
stairs
|
1000mm steel structure stair was made of welded C160*60*20 steel,and the step was made of 2.5mm figured and galvanized steel plate.
|
||
|
12
|
Corridor panel
|
2.5mm figured and galvanized steel plate.
|
||
|
13
|
wall panel
|
50mm double-faced colored steel sandwich board with the PU,phenolic aldehyde and mineral wool filler inside
|
||
|
14
|
roof panel
|
50mm double-faced colored steel sandwich board
|
||
|
15
|
floor slab
|
15--18mm plywood or 3mm concrete plates
|
||
|
16
|
door
|
steel frame composite wall panel,and the specification is 805mm*2000mm
|
||
|
17
|
window
|
plastic steel sliding window with conch-shaped material,one layer or double layers window
|
||
|
18
|
elective components
|
removable suspended ceiling
|
suspended ceiling made of mineral wool acoustic board
|
|
|
19
|
window
|
colored steel sliding windows’ colors are red,blue or white,the window’s specification is 1740mm*950mm；alnuminium alloy sliding window’s specification is 1740mm*950mm;the window is one layer,double layers; or organic glass.
|
||
|
20
|
door
|
one-way opening door made of colored steel,the specification is 805mm*2000mm;two-way opening door made of colored steel,the specification is 1740mm*2000mm，color can be red,blue or white.
|
||
|
21
|
appliance
|
the plan,design and construction can be provided
|
||
|
22
|
water supply and drainage
|
the plan,design and construction can be provided
|
||
|
23
|
structure
|
roofing load
|
50kg/㎡
|
|
|
24
|
wind resistance
|
11grade，0.6KN/㎡(Chinese standard)
|
10 grade，0.45KN/㎡(Chinese standard)
|
|
|
25
|
fire rating
|
the house maintenance material is nonflammable which belongs to B1 level, the plywood of the floor can reach to B1 level if it is fire-proofing.
|
||
|
26
|
seismic fortification intensity
|
7 magnitudes
|
||
