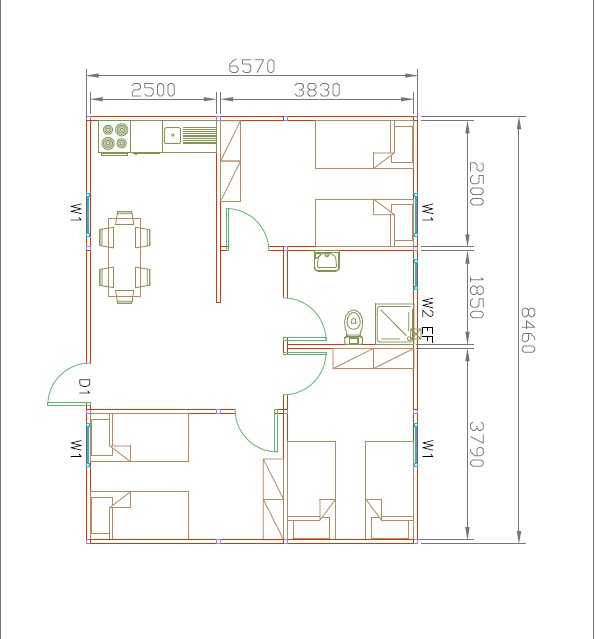

Structural Drawings
Technical Parameters

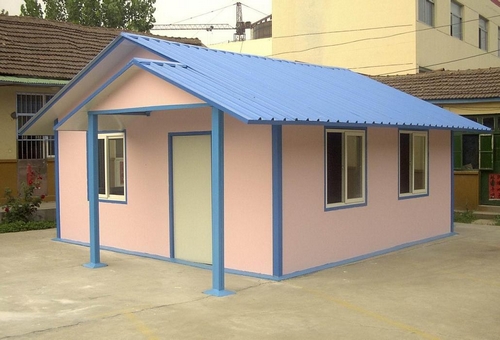

Relevant Pictures
Prefab house is widely used in remote areas as resident houses, construction accommodations, office, classroom, clinics, oil field camps, offshore accommodation, labor camps, guardrooms, container house and mobile house, the prefab house has advantages in easy installation, low time and labor cost, being economical and environmentally friendly. The main frame work is light steel structure and the wall&roof panel is sandwich type. All steel parts are connected by screws.
|
1
|
specification:
mT×nT×hH=
length×width×height
|
length：
|
nK+160,1T=1150mm,(n is an arbitrary number which equals to or more than 2,n=2,3,4,5,6… )
|
|
2
|
width：
|
mK+160,1T=1150mm,(m is an arbitrary number which equals to or more than 2,n=2,3,4,5,6… )
|
|
|
3
|
wall height/ridge height：
|
criteria:2850mm/3940mm (adjustable scope：2450～3000mm/3500～4050mm）
|
|
|
4
|
inner clear height:
|
2700mm（the height of the lowest part indoor）1H=1000mm two storeys means 6H ，h=3，6，9
|
|
|
5
|
standard components
|
column
|
14# double T-steel made of galvanized material
|
|
6
|
cross beam
|
14＃U shape galvanized steel jointed by two steelcolumns
|
|
|
7
|
beam and column
|
120 steel made of galvanized material
|
|
|
8
|
corridor board
|
3mm figured board made of galvanized material
|
|
|
9
|
floor slab
|
15mm plywood
|
|
|
10
|
fence
|
40# angle iron、30*2mm rectangular steel tube made of galvanized material
|
|
|
11
|
corner column
|
40# angle iron made of galvanized material
|
|
|
12
|
platform on the corner
|
8＃C-shaped steel made of galvanized material
|
|
|
13
|
staircase
|
16#C-shaped steel made of galvanized material
|
|
|
14
|
handrail
|
40# angle iron、30# steel made of galvanized material
|
|
|
15
|
column on the platform
|
∮48tube made of galvanized material
|
|
|
16
|
floor purlin
|
12＃C-shaped steel made made of galvanized material
|
|
|
17
|
roof tile
|
75mm tile
|
|
|
18
|
wall panel
|
50mm double-faced coloured sandwich board
|
|
|
19
|
interior wall panel
|
50mm double-faced coloured sandwich board
|
|
|
20
|
door
|
50mm double-faced coloured composited board
|
|
|
21
|
window
|
aluminium alloy sliding window
|
|
|
22
|
elective components
|
removable suspended ceiling
|
mineral wool acoustic panel suspended ceiling
|
|
23
|
window
|
aluminium alloy sliding window,custom made,the window is one layer,double layers; or organic glass.
|
|
|
24
|
door
|
ne way open coloured steel door,security door
|
|
|
25
|
appliance
|
custom made
|
|
|
26
|
water supply and drainage
|
custom made
|
|
|
27
|
transportation
|
|
a 40 feet container can load 250-300 square meters house
|
