Description of steel warehouse project
1. Prefabricated and customized design for prefabricated steel structure house
2. Low foundation cost, thanks to the light weight of the steel structure itself.
3. Easy construction, time-saving, and labor saving.
4. Fire-proof, heat and cold-insulation
5. Beautiful appearances, and higher space efficiency.
6. Excellent anti corrosion property and earthquake-resistance

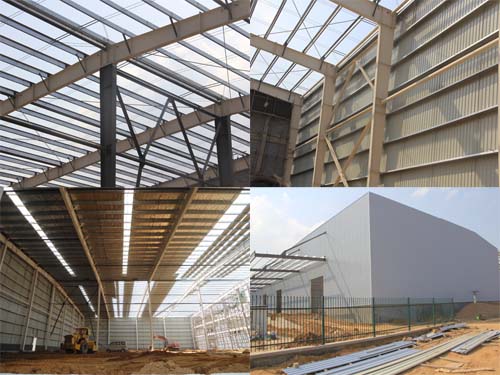

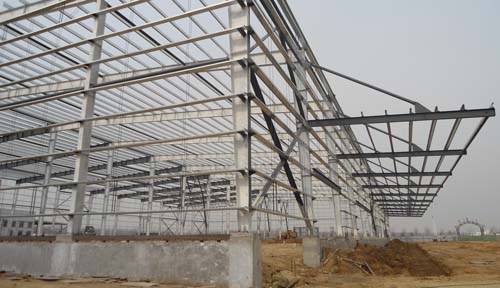

The whole steel warehouse project adopts steel frame structure
1# steel warehouse project area: 9402 ㎡, length: 125.48m, span: 70.48m, eaves height: 12m
1. Exterior roof panel: V-YX53-475, Single-sided galvalume corrugated steel sheet, 0.6mm +50 mm thick ultra-fine centrifugal glass cotton felt
2. Exterior wall panel with evelation 0.8mm above: 0.5 mm double-sided galvalume corrugated steel sheet + 50 mm ultra-fine centrifugal glass cotton felt
3. Interior wall panel: 0.6mm galvanized steel sheet
4. Gutter:15.mm thick stainless steel plate
5. Weather shed: 0.6 mm galvanized steel sheeting
6. Roof lighting sheet: V-475 double waveform resin lighting board
2# steel warehouse project area:12733.56㎡, main total height of 13.4 m
The wall panel, roof panel and roof lighting sheet of 2# warehouse used similar materials with 1# warehouse’s.
